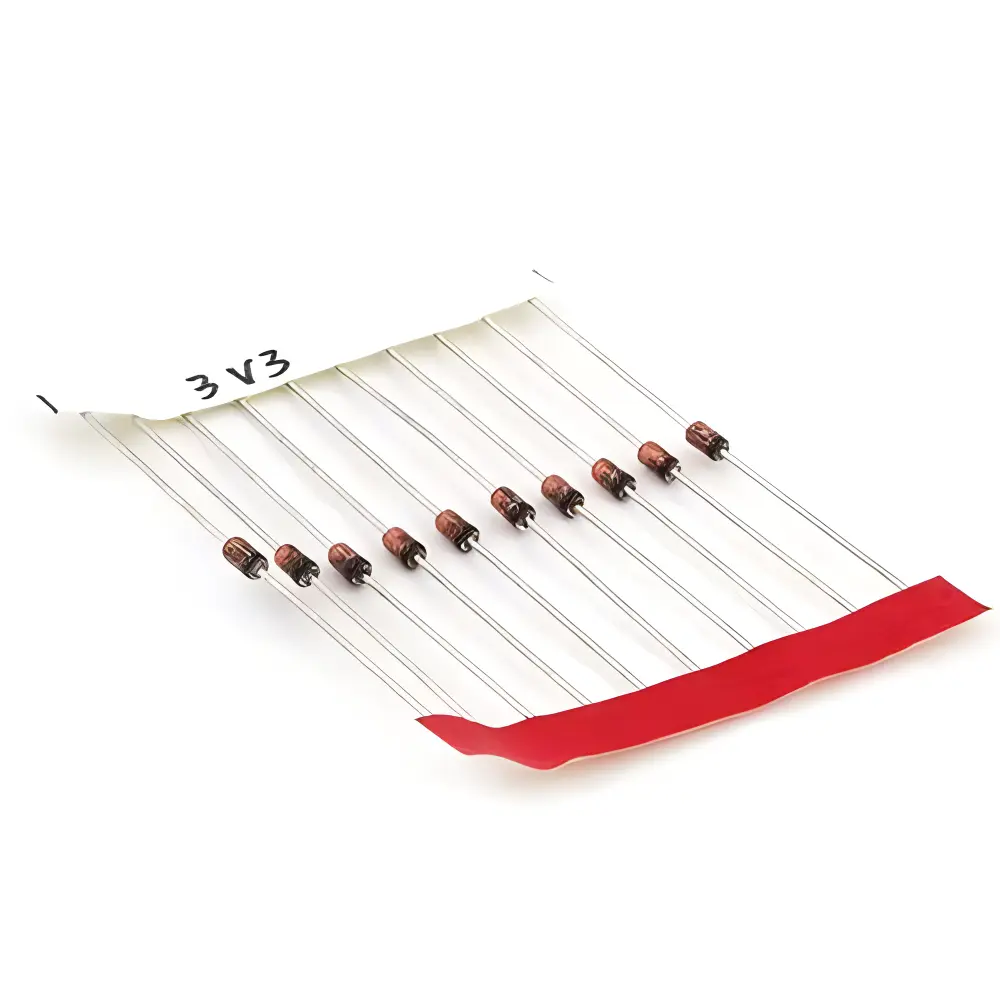

The Zener Diode, also known as a voltage-stabilizing diode or a Zener diode, is a special semiconductor device characterized by its unique voltage stabilization properties. It has a wide range of applications in electronic circuits, particularly in situations where a stable voltage is required.

I. Characteristics
The core characteristic of the Zener Diode lies in its ability to maintain an approximately constant voltage under reverse voltage conditions. This characteristic is mainly attributed to its special PN junction structure. Compared to ordinary diodes, the reverse breakdown voltage of the Zener Diode is set lower, often below 3V. When the reverse voltage increases to a certain level, known as the breakdown voltage of the Zener Diode, the reverse current increases sharply, but the voltage remains basically unchanged. This characteristic makes the Zener Diode suitable for use as a voltage stabilizer or voltage reference component.

The stabilization voltage value of the Zener Diode is classified according to its breakdown voltage. Additionally, the Zener Diode has a dynamic resistance (rZ), and the smaller its value, the steeper the breakdown characteristic of the voltage stabilizer. Temperature changes can also affect the stabilization voltage of the Zener Diode, but the temperature coefficient differs depending on the voltage range. When the absolute value of the stabilization voltage (|VZ|) is below 4V, the temperature coefficient is negative, which is known as Zener breakdown. When |VZ| is higher than 7V, the temperature coefficient is positive, which is known as avalanche breakdown. When 4V < |VZ| < 7V, the Zener Diode can achieve a nearly zero temperature coefficient, and such a voltage stabilizer can be used as a standard one.

II. Applications
Surge Protection: In power systems, surge voltages can damage other components in the circuit. By paralleling a Zener Diode, the surge voltage can be limited to a safe range, protecting the circuit from damage.
Overvoltage Protection in Televisions: Some circuits in televisions are very sensitive to voltage fluctuations. By series-connecting a Zener Diode, the voltage can be stabilized, preventing damage to the circuit due to excessive voltage.
Arc Suppression: In switching circuits, arc discharge can generate severe inteRFerence. Using a Zener Diode can effectively suppress arc discharge and improve circuit stability.
LED Protection: When making high-power LEDs, a Zener Diode can be paralleled or series-connected to prevent the LED from being damaged by excessive current.
Voltage-Stabilized Power Supplies: The Zener Diode is a key component in voltage-stabilized power supplies. By series-connecting a resistor and a Zener Diode, a simple voltage-stabilized circuit can be created to provide a stable output voltage.
Circuit Limiting: In signal processing circuits, it is sometimes necessary to limit the amplitude of signals. A Zener Diode can be used as a limiting component to restrict the signal amplitude within a predetermined range.

III. Operating Principles
The operating principle of the Zener Diode is based on the reverse breakdown state of the PN junction. When the reverse voltage increases to a certain level, the electric field intensity in the PN junction reaches a critical value, causing the reverse current to increase sharply while the voltage remains constant. This breakdown is known as Zener breakdown. Unlike the reverse breakdown of ordinary diodes, Zener breakdown occurs in a region with a narrower depletion layer and higher electric field intensity. In the state of Zener breakdown, the Zener Diode exhibits low-impedance characteristics, allowing a large amount of current to pass through while maintaining a stable voltage.

Additionally, the Zener Diode has a breakdown characteristic in the cutoff region. In this case, there is a negative impedance relationship between current and voltage, meaning that the voltage decreases as the current increases. This characteristic makes the Zener Diode very useful when generating reference voltages in circuits.

IV. Conclusion
The Zener Diode is a semiconductor device with unique voltage stabilization properties. By utilizing its reverse breakdown characteristic, the Zener Diode can play an important role in electronic circuits as a voltage stabilizer, voltage reference component, or limiting component. Understanding the characteristics, applications, and operating principles of the Zener Diode is crucial for designing stable and reliable electronic circuits.
