Sub-5μm Resist Patterning via Microcontact Printing (μCP) Technology

MICrocontact printing (μCP) enables nanoscale patterning without photolithography, critical for MEMS and biochips. This elastic-stamp-based technique achieves molecular-level transfer, breaking the diffraction limit. This guide details key processes for sub-5μm precision, including stamp fabrication, ink engineering, and printing optimization.

1. High-Precision Stamp Fabrication

1.1 Materials & Structure

Fabrication:

1. Si Master:

   • DRIE etching (5:1 aspect ratio)

   • Fluorosilane vapor deposition

2. Molding:

   • Spin-coat h-PDMS (500rpm×60s)

   • Pour 10:1 PDMS mixture, degas

   • Cure at 80℃×2h, demold

1.2 SuRFace Energy Tuning

• Plasma: O₂ 50W×30s → contact angle 10°

• PEG Coating: 0.1wt% solution immersion

2. Resist Ink Engineering

2.1 Thiol-Based SAM Inks

2.2 Nanoparticle Inks

• Au NPs: 5nm diameter, citrate-reduced

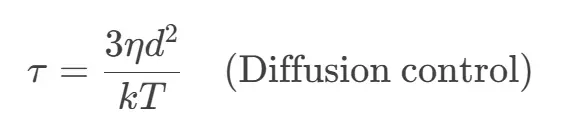

• Transfer Mechanism:

  $$\mathrm{<img\; itemprop="image"\; src="/source/bd54b5dd8d91172c1fe9e92873049e1a/5442087aeb3d960665d250899633d2a1.png">}$$

  Add 2wt% HPMC to increase η to 12cPs

3. Precision Printing Control

3.1 Contact Parameters (Figure 2)

3.2 Environmental Control

• Humidity: 45±5% RH (prevents condensation)

• Temperature: 23±0.5℃ (diffusion rate +15%/℃)

• Vibration Isolation: <0.1μm amplitude (ISO 1940-1 G0.4)

4. Pattern Transfer & Etching

4.1 Wet Etching Enhancement

• Etchant:

  $${\text{FeCl}}_3(0.5\text{M})+\text{HCl}(0.1\text{M})+\text{Thiourea}(0.05\text{M})$$

• Anisotropy:

  • Vertical rate: 120nm/min

  • Undercut: <10nm/min (8× lower than conventional)

4.2 Dry Etching Parameters

5. Performance Validation

5.1 4μm Linewidth Results

5.2 Biosensor Chip Application

• Structure: 3μm-gap interdigitated electrodes

• Performance:

  • Detection limit: 10aM (100× improvement)

  • SNR: 42dB (vs. 28dB baseline)

• Reliability: No degradation after 30d in PBS
