Optimizing Selective Coating Process for Precision Conformal Coating Coverage

1. Background & Challenges

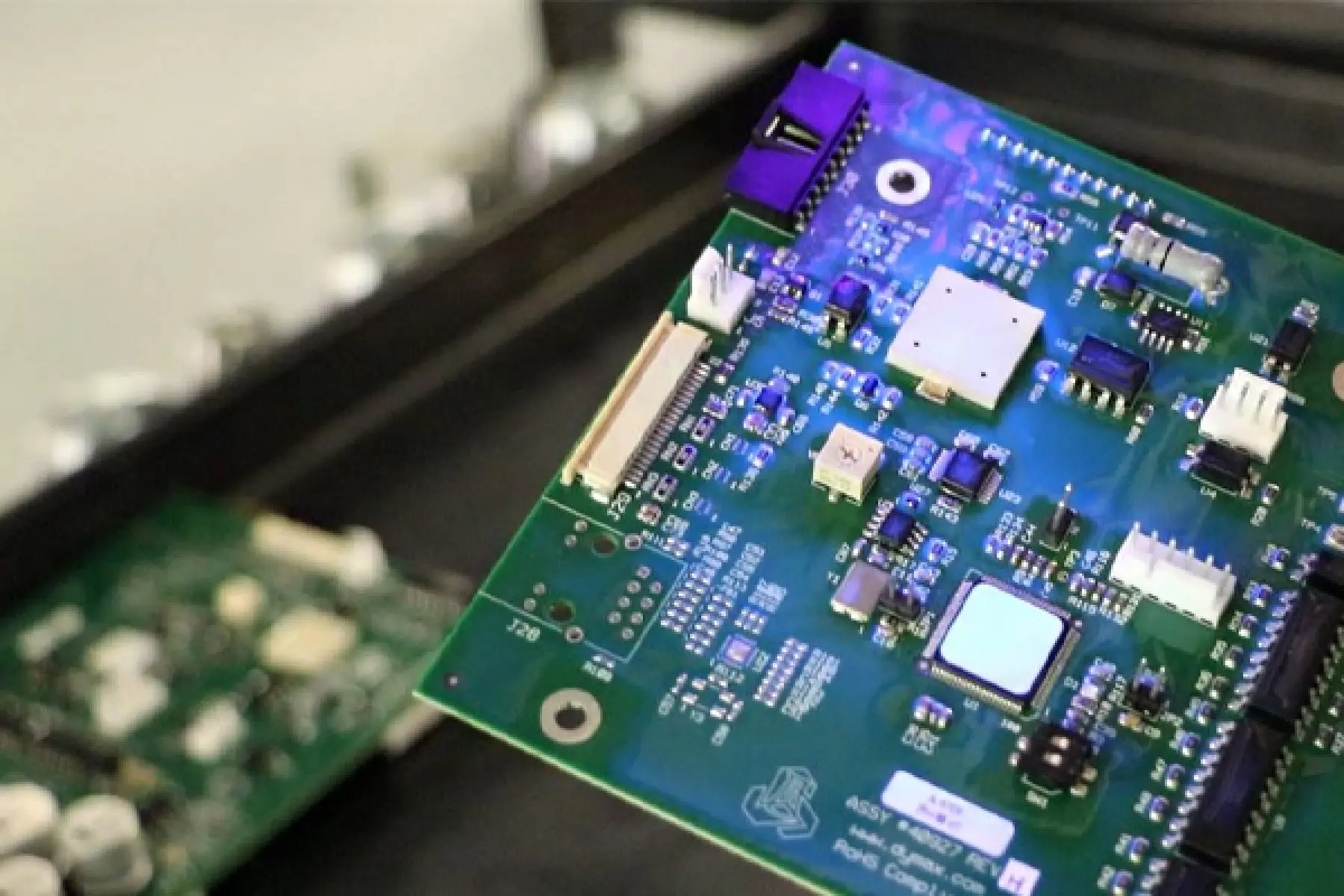

Precision conformal coating (moisture, dust, and corrosion protection) is critICal in electronics manufacturing, especially for complex PCBs. Traditional methods face issues like overspray, fuzzy edges, and missed areas. Key optimization goals include:

• Positioning accuracy: ≤±50μm edge deviation;

• Coating uniformity: ±10% thickness tolerance (20–50μm target);

• Throughput: ≥200mm/s coating speed;

• Material utilization: <5% waste.

2. Key Optimization Strategies

2.1 High-Precision Equipment

• Motion control: Linear motors (±5μm repeatability) with 17-bit encoders.

• Smart nozzles:

  • Piezoelectric jetting (1pL droplet size);

  • 5-axis robotic arms for complex geometries (e.g., BGA undeRFill).

• Vision alignment: AI-powered CCD (5μm/pixel) compensates substrate deformation.

2.2 Material Engineering

• Rheology control: Nano-silica (0.1–0.5wt%) for thixotropy (500–1000cP static viscosity).

• Fast curing: UV (<5s at 80–120mJ/cm²) or thermal systems.

• Edge sharpness: Fluorosurfactants (0.01–0.1wt%) reduce surface tension to <25mN/m.

2.3 Process Parameter Tuning

• Spray parameter matrix:

  Parameter	Range	Impact
  Pressure	0.2–0.8bar	Higher → finer droplets
  Nozzle height	2–5mm	Higher → wider spread
  Speed	100–300mm/s	Higher → thinner coating
  Overlap	30–50%	Higher → uniformity↑

• Dynamic adjustment: Closed-loop control via IR thermography and laser thickness sensors.

2.4 Intelligent Path Planning

• Zone-specific strategies:

  • High-precision areas (e.g., QFN pins): Spiral path (0.1mm spacing) at 100mm/s;

  • Large areas (e.g., power Modules): Raster scan (0.5mm spacing) at 250mm/s.

• Anti-overspray:

  • CAD offset: 50μm inward boundary compensation;

  • Gradient spraying: 20% lower pressure at edges.

2.5 In-Line Quality Control

• 3D inspection: White-light interferometry (100 points/cm²) triggers automatic rework.

• Defect detection: YOLOv5 model (>99% accuracy) identifies bubbles/cracks.

• Data traceability: MES integration for SPC (Cpk≥1.67) and root cause analysis.

3. Case Studies

Case 1: Automotive ECU Coating

• Challenge: Full BGA coverage without connector contamination.

• Solution:

  • 5-axis piezo head + vision (±20μm);

  • Thixotropic UV coating (800cP);

  • Spiral path for BGA, 5mm keep-out zone.

• Result: 99.5% yield, ±8% thickness uniformity, 3% waste.

Case 2: 5G RF Module Coating

• Challenge: Localized coating to minimize signal loss.

• Solution:

  • Dual-head piezo jets (2× throughput);

  • Low-Dk coating (Dk<3.0 @10GHz);

  • AOI + ML-based parameter adjustment.

• Result: ±35μm accuracy, <0.1dB loss, 45s/piece cycle time.
