Factors affecting PCB prices

Factors affecting Pcb Prices
In the manufacturing process of electronic products, printed Circuit Boards (PCB) play a crucial role as a bridge connecting various electronic components. However, the price of PCB is not constant, but is affected by many factors.

I. Material factors

Substrate type and material
There are various types of PCB substrates, including FR-4, FR-1, CEM-1, CEM-3, and so on. There are significant differences in price among these different types of substrates. For example, FR-4 is a widely used glass fiber reinforced epoxy resin substrate that has good electrical properties and mechanical strength at a moderate price. Some substrates made of special materials, such as metal substrates or ceramic substrates, usually have higher prices due to their higher performance requirements.

Plate thickness and copper weight
The thickness of the board and the weight of the copper are also important factors that affect the price of the PCB. Generally speaking, the thicker the plate, the higher the material cost required; Similarly, the heavier the copper weight, the more copper foil material is required, which increases the cost. Therefore, when selecting a PCB, customers should reasonably determine the board thickness and copper weight according to actual needs to control costs.

Number of layers
Compared to single-layer or double-layer boards, multi-layer boards require more manufacturing processes and materials, resulting in higher costs. Each additional layer requires additional production steps and material costs, such as drilling, electroplating, and laminating. Therefore, when designing a PCB, we should fully consider the actual needs and avoid unnecessary layer increases.

II. Process factors

Solder mask and silk screen

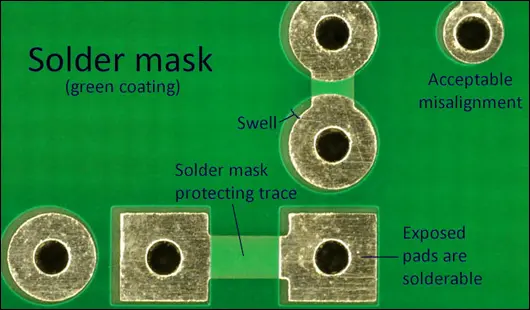

The solder mask is a protective coating on the PCB that is used to prevent short circuits and oxidation during soldering. The brand and type of ink used in the solder mask layer will affect the price. Similarly, as a logo and mark on the PCB, the quality and color of the silk screen will also affect the price. Some high-end customers may require the use of high-quality ink and silk screen printing processes, which increases costs.

Surface treatment
There are various surface treatment processes for PCBs, such as immersion gold, lead-free HASL, OSP, and so on. These different surface treatment processes vary in price and performance. For example, although the gold immersion process has high cost, it has excellent electrical performance and corrosion resistance; The OSP process has lower cost, but its electrical performance and corrosion resistance are relatively poor. Therefore, when choosing a surface treatment process, it should be weighed according to actual needs.

Wiring and impedance control
The routing and impedance control of PCBs are important factors that affect their performance and price. High-density wiring and high-precision impedance control require higher production processes and precision requirements, which increases costs. Therefore, when designing a PCB, the requirements for wiring and impedance control should be fully considered to avoid unnecessary cost increases.

III. Technical Difficulties and Special Requirements

Technical difficulty
The technical difficulty of PCB manufacturing is one of the key factors affecting the price. The complex manufacturing process requires more time and resources, thereby increasing costs. For example, requirements such as small aperture, fine line width, and high-density wiring have increased manufacturing difficulty and cost. Therefore, when designing PCBs, unnecessary complexity and high difficulty requirements should be avoided as much as possible.

Special requirements
Some customers may have special performance requirements or standards for PCBs, such as high TG materials, halogen-free, high-frequency boards, and so on. These special requirements usually require the use of special materials and processes to meet, which increases costs. In addition, some customers may also require higher electrical performance, mechanical strength or temperature resistance, which will also increase costs.

IV. Production quantity and delivery time

Production quantity
Mass production can reduce unit prices because fixed costs can be spread across more products. However, small-scale production will increase the price of each PCB, as fixed costs cannot be effectively allocated. Therefore, when purchasing PCBs, customers should reasonably determine the production quantity according to actual needs to control costs.

Delivery time
Delivery time is also one of the factors that affect the price of PCB. Urgent or expedited orders may require additional fees, as suppliers need to adjust production schedules or work overtime to meet delivery time requirements. Therefore, when purchasing PCBs, customers should plan the delivery time in advance and communicate fully with suppliers to avoid unnecessary cost increases.

V. Preparation of Design Documents
Providing complete and accurate design documents is crucial for PCB manufacturers. If there are errors or omissions in the design documents, it will result in additional modifications and rework by the manufacturer, thereby increasing costs. Therefore, before submitting the design documents, the client should carefully check and confirm the completeness and accuracy of the documents to reduce unnecessary cost increases.

VI. Other special requirements
In addition to the above factors, there are some other special requirements that will affect the price of PCB. For example, customers may require the use of specific packaging materials or methods, the provision of specific test reports or certifications, and so on. These special requirements usually require additional cost inputs to meet, which also increases the price of PCBs.

The factors that affect the price of PCB are many, including materials, processes, technical difficulties, production quantity and delivery time, design document preparation, and other special requirements. Minintel's professional team will provide customers with reasonable advice to help them produce competitive products.
