contact us
Leave Your Message

Controlling Ceramic Filler Dispersion Uniformity in Embedded Capacitor Process

2025-06-07

In embedded Capacitor processes, the dispersion uniformity of ceramIC fillers (e.g., BaTiO₃, TiO₂) determines dielectric constant consistency (variation≤5%) and breakdown strength (>100V/μm). Agglomerates >0.5μm or local concentration deviations >15% cause capacitance shifts >±10%.

Embedded Capacitor Process.png

1. Filler Pretreatment & SuRFace Modification

1.1 Key Pretreatment Parameters

Process Parameters Mechanism
Calcination 800℃×2h (air) Remove hydroxyl groups
Ball Milling ZrO₂ balls, 300rpm×8h D50=0.2±0.05μm
Size Classification Centrifugal @8000rpm Remove >1μm agglomerates

1.2 Surface Modifier Formulation

Component Dosage (wt%) Function
Silane KH-550 1.0-1.5 Resin-filler bonding
Stearic Acid 0.3-0.5 Reduce surface energy
Hyperdispersant BYK-111 0.8-1.2 Electrostatic stabilization

Effects:

  • Contact angle ↑25°→85° (hydrophobic)

  • |Zeta potential| >40mV (electrostatic stability)

2. Dispersion Process Optimization

2.1 Multi-Stage Dispersion (Fig.1)

  1. Premixing:

    • Planetary mixer @500rpm×10min (-95kPa vacuum)

    • Resin temp: 40±2℃ (viscosity 1500±200cPs)

  2. High-Shear Dispersion:

    • Rotor-stator @15m/s linear speed

    • Energy density >100J/mL, ΔT<10℃

  3. Three-Roll Milling:

    • Gap=5μm, speed ratio 1:3:9

    • ≥3 passes, fineness ≤5μm (Hegman scale)

2.2 Rheological Control

  • Viscosity-Shear Rate Model:

    Target: 1000-2000cPs @100s⁻¹

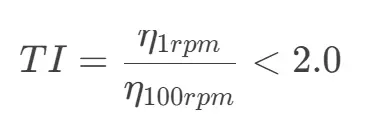

  • Thixotropic Index:

    Add 0.1% fumed silica (Aerosil 200) for anti-sag

3. In-line Monitoring & Closed-Loop Control

3.1 Real-Time Detection

Method Principle Accuracy Response
Laser Diffraction Mie scattering D50±0.02μm 10s
In-line Viscometer Vibrating probe ±5cPs Real-time
NIR Spectroscopy 1350nm absorption peak Conc.±0.8% 2s

3.2 Feedback Control

  • PID Loop:

    • Input: Actual vs. target viscosity

    • Output: Disperser speed adjustment (±50rpm)

  • Emergency Protocol:

    • Trigger 40kHz ultrasound when D10>0.35μm

4. Uniformity Verification

4.1 Microscopic Characterization

Technique Sample Prep Metric
SEM-EDS Mapping Ion-polished cross-section Elemental CV<5%
AFM Phase Imaging Nanoindentation Modulus variation<8%
X-ray μCT 1μm resolution scan 3D agglomerates<50/mm³

4.2 Electrical Validation

  • Dielectric Consistency:

    • 10-point sampling @1MHz, ΔC≤±3%

  • Breakdown Strength:

    • Step voltage test (100V/s), Weibull β>15

5. Case Study Data

5.1 Automotive Radar Board (60vol% BaTiO₃)

Parameter Baseline Optimized
D90 Particle Size 1.8μm 0.6μm
Dk Variation ±12% ±2.5%
Capacitance Density 25nF/cm² 38nF/cm²
Breakdown Voltage 82V/μm 125V/μm

5.2 Reliability Tests

  • Thermal Shock (-55℃↔150℃, 1000cyc):

    • ΔC<3% (vs. >12% baseline)

  • TH Aging (85℃/85%RH, 1000h):

    • IR>10¹¹Ω (vs. 10⁹Ω baseline)

Conclusion

Through surface energy control (contact angle>80°), high-shear dispersion (>100J/mL), and closed-loop monitoring:

  1. Agglomerate size <0.5μm

  2. Dielectric constant CV<3%

  3. Capacitance density ↑52%
    Meeting stringent uniformity requirements for high-speed PCBs.

Critical Control Points:

  1. Triple Protection: Silane + stearic acid + hyperdispersant

  2. Dispersion Energy: ≥100J/mL mechanical energy input

  3. Real-time Monitoring: NIR + viscometer dual feedback

  4. Definitive Verification: X-ray CT 3D reconstruction
