Achieving Broadband Impedance Matching through Dielectric Constant Distribution Design

Achieving Broadband Impedance Matching through DielectrIC Constant Distribution Design

(From Theoretical Models to mmWave Applications)

I. Broadband Matching Principle & Dk Gradient

1. Limitations of λ/4 Transformer

   • Traditional bandwidth:
     $\frac{\mathrm{\Delta }f}{f_0}=2-\frac{4}{\pi }\arcsin \left(\frac{Z_L-Z_S}{Z_L+Z_S}\right)$
     For $Z_L\mathrm{/}{Z}_S=5$, $\mathrm{\Delta }f\mathrm{/}{f}_0<40\mathrm{\%}$

2. Gradient Dk Mechanism
   $Z(x)=Z_S\exp (\frac{x}{L}\ln \frac{Z_L}{Z_S})$


   • Continuous ${\epsilon }_r(x)$enables >100% bandwidth (e.g., 1-30GHz)

II. Dk Gradient Design Methods

1. Multi-Layer Stepped Approximation

Interlayer Dk Formula:
${\epsilon }_{r,n}={\epsilon }_{r,min}{\left(\frac{{\epsilon }_{r,max}}{{\epsilon }_{r,min}}\right)}^{\frac{n}{N+1}}$

2. Continuous Gradient Implementation

• Material Doping (Ceramic Substrate):

  Position	TiO₂ Doping	${\epsilon }_r$	Thickness(mm)
  Input	0%	9.8	0.2
  Middle	15%	15.2	0.3
  Output	30%	24.1	0.2

• 3D-Printed Gradient:

  python

  # Spatial Dk Distribution Model    def epsilon_r(x, y, z):        return 3.5 + 8.5 * (1 - math.exp(-(z/1.5)**2))  # Z-axis gradient

III. Key Design Parameters Optimization

1. Gradient Profile Comparison

Klopfenstein Optimal Solution:
$\mathrm{\Gamma }(\theta )={\mathrm{\Gamma }}_0\frac{\cos \sqrt{{\theta }^2-A^2}}{\cosh A}(A=1.0\text{ for max BW})$

2. Loss Control Strategies

• Loss Tangent Distribution:
  $\tan \delta (x)\le 0.001+0.005\cdot {\left(\frac{{\epsilon }_r(x)-2}{20}\right)}^2$


• SuRFace Roughness Requirement:
  $Ra<\frac{{\delta }_s}{8}=\frac{1}{8}\sqrt{\frac{2}{\omega \mu \sigma }}$(δs: skin depth)

IV. mmWave Application Case (77GHz Automotive Radar)

Design Targets:

• Match 50Ω feed to 120Ω Antenna (VSWR<1.5 @76-81GHz)

• Insertion loss<0.5dB

Implementation:

[Input]--Dk=6.4--[Gradient]--Dk=2.2--[Output]      │                   │      │ LTCC 7-layer      │ 3D-printed continuous

Performance Comparison:

Test Data:

• Insertion loss: [email protected]

• Phase consistency: ±1.5° (full band)

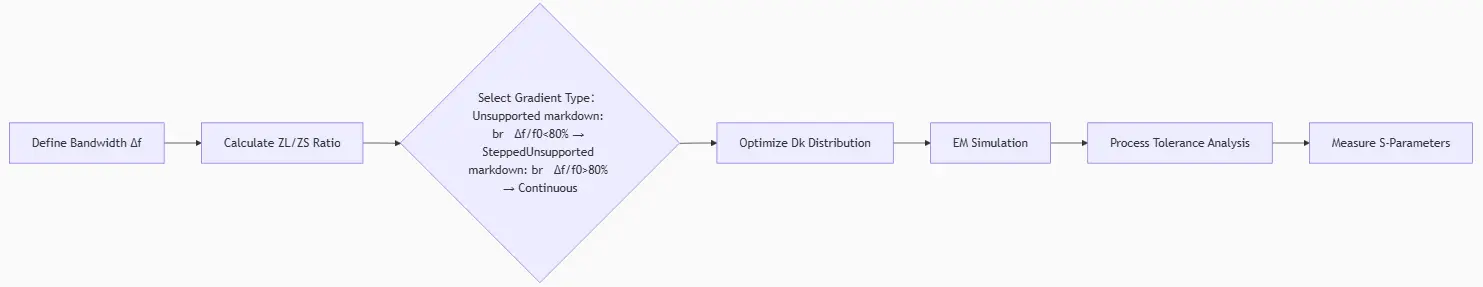

V. Design Verification Flow

Compliance Criteria:

• Broadband VSWR<1.5

• Group delay variation<5ps

• Meets IPC-2141A Standard
